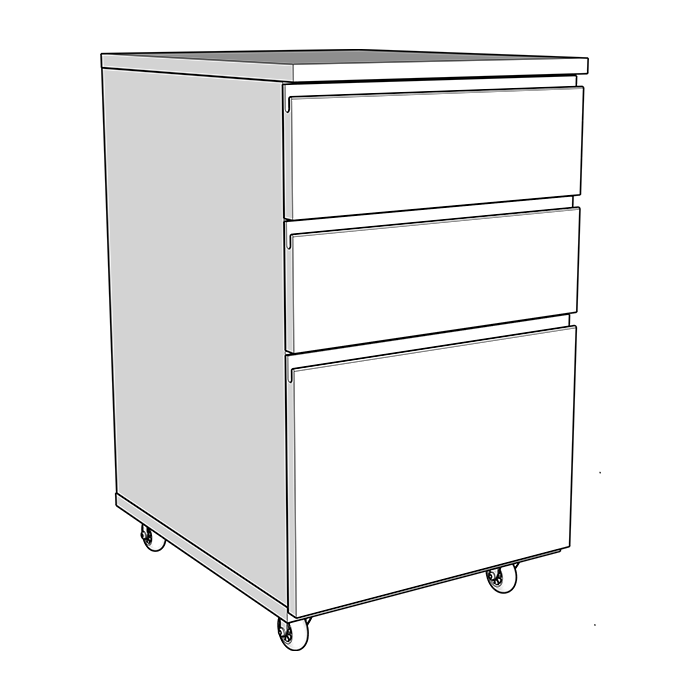

Solid Oak Under-Desk Three Drawer Unit Installation Guide

Tools you'll need

Manual Screwdriver PZ2

Safety First

Use caution when handling heavy or bulky components to prevent injury or damage to yourself and the product.
Always wear protective equipment, such as gloves or safety glasses, when using power tools to avoid accidents.
Do not over-tighten screws or bolts, as this can damage the components or compromise the stability of the product.
Please follow the provided instructions carefully to ensure proper assembly and use of the product.
Keep small parts away from children or pets, as they can be a choking hazard.
Inspect the product for any defects or damages before assembly, and contact us if you notice any issues.
Please do not modify the product or use it for any purpose other than its intended use.
Use caution when working with sharp tools or edges, and keep them away from children and pets.
If you are uncertain about any aspect of the assembly process, seek assistance from a professional or contact us for further assistance.
Do not sit or stand on the product.
This product is not intended to support people or heavy objects. Avoid placing excessive weight to prevent damage and instability. MAX 20 Kg.

solid oak desk height three drawer unit installation guide max weight

Instructions

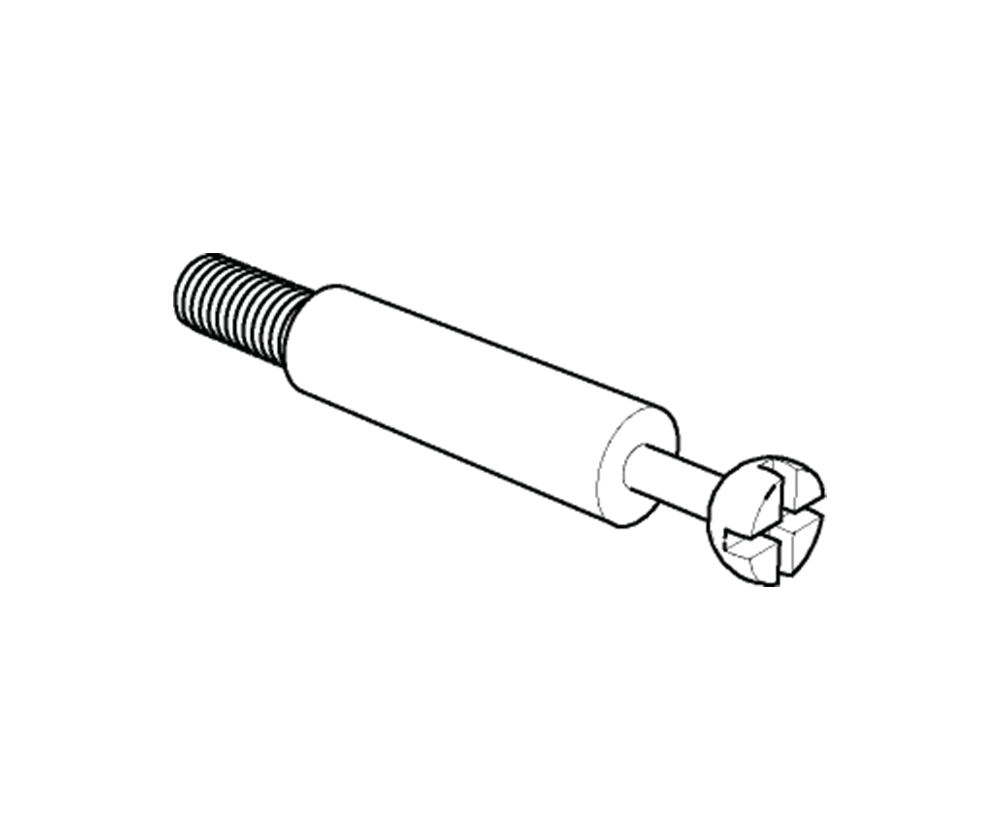

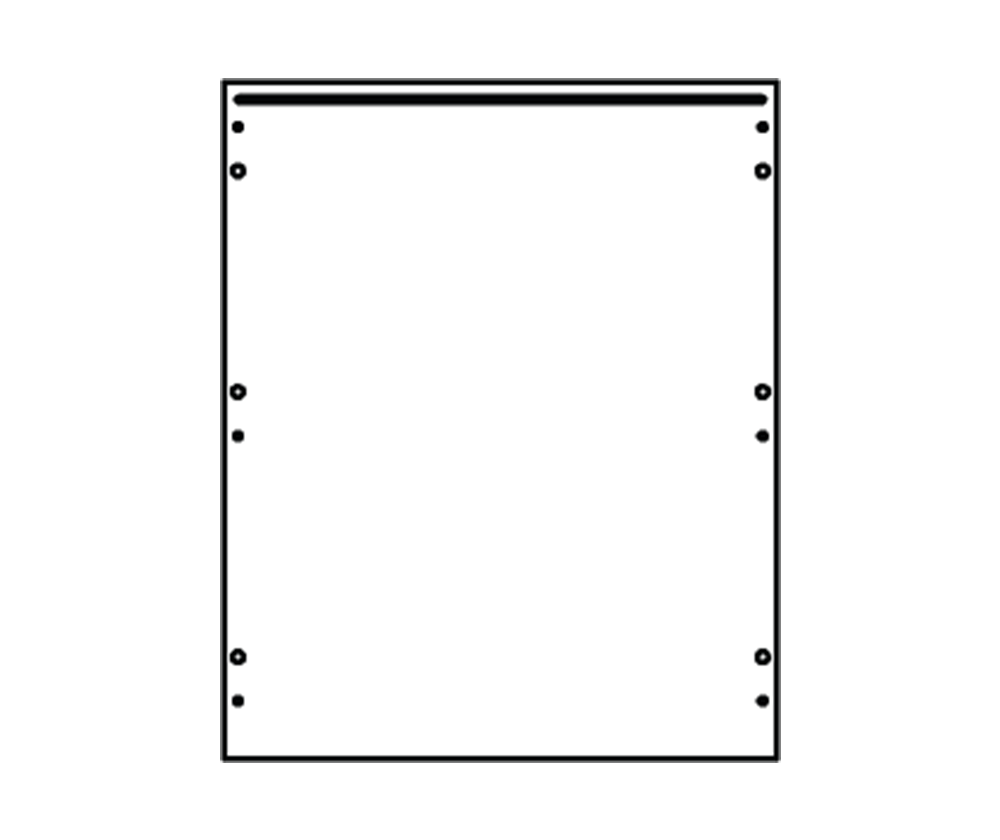

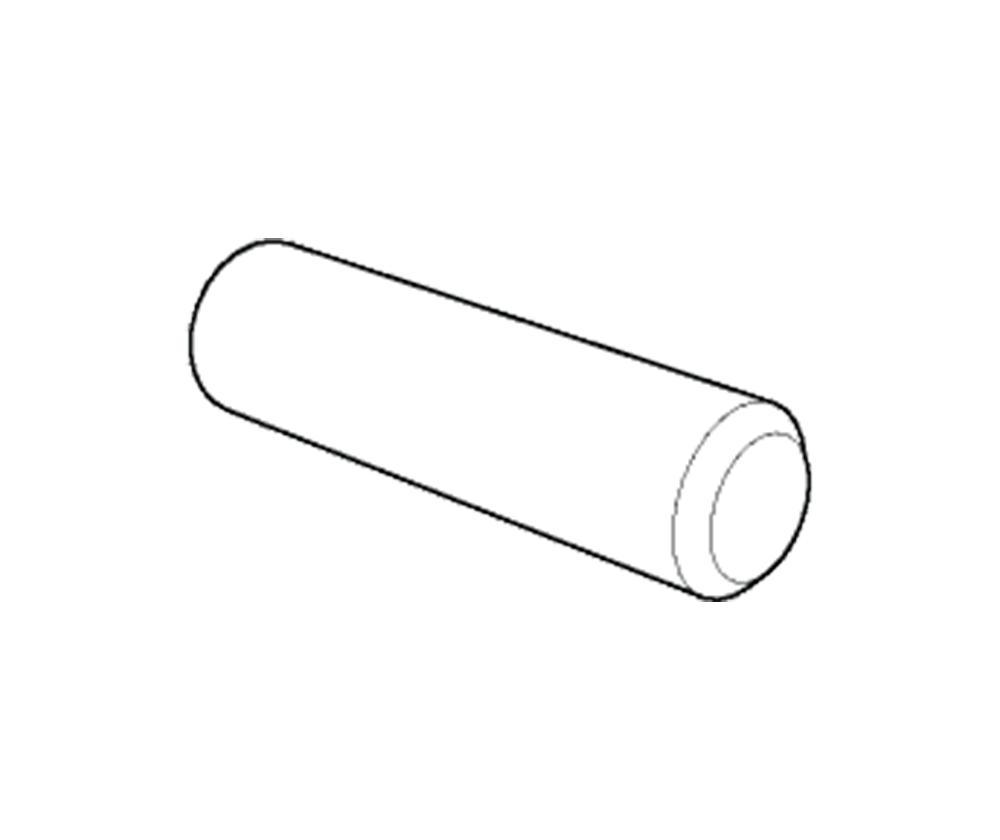

Step 1. Please read the safety guidelines stated above before you start to assemble the product. Insert the metal dowels in the bottom and tighten them with a cross-head screwdriver until the threaded part is completely hidden. Do no over tighten the fittings.

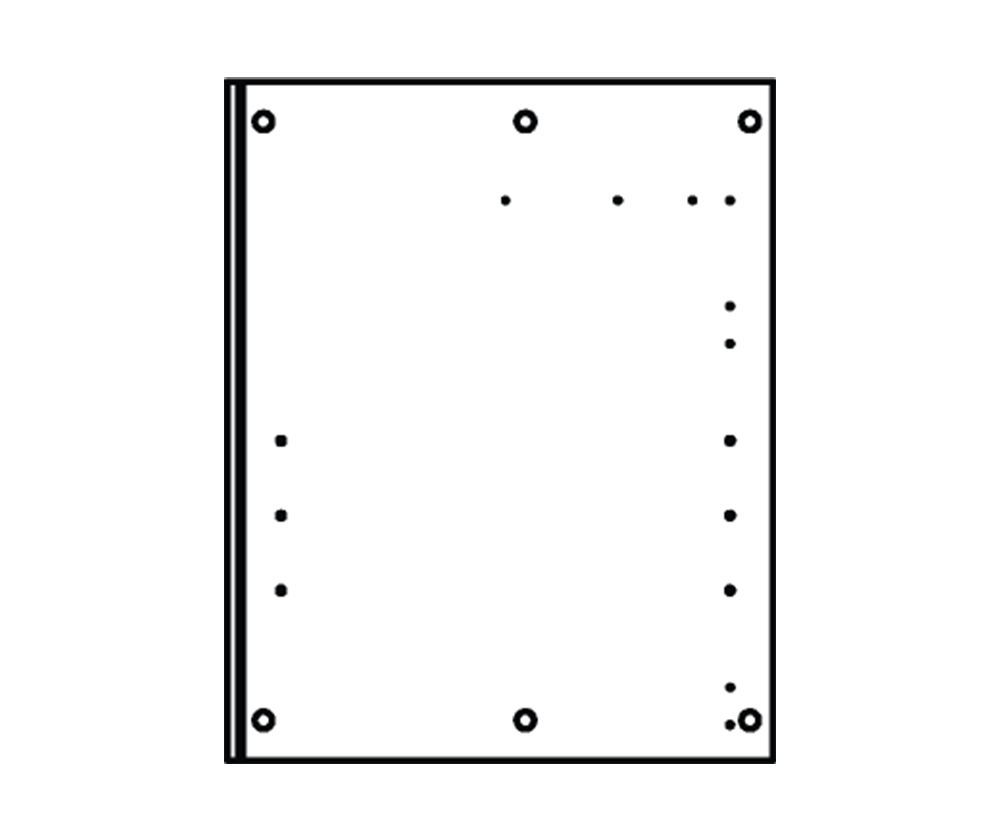

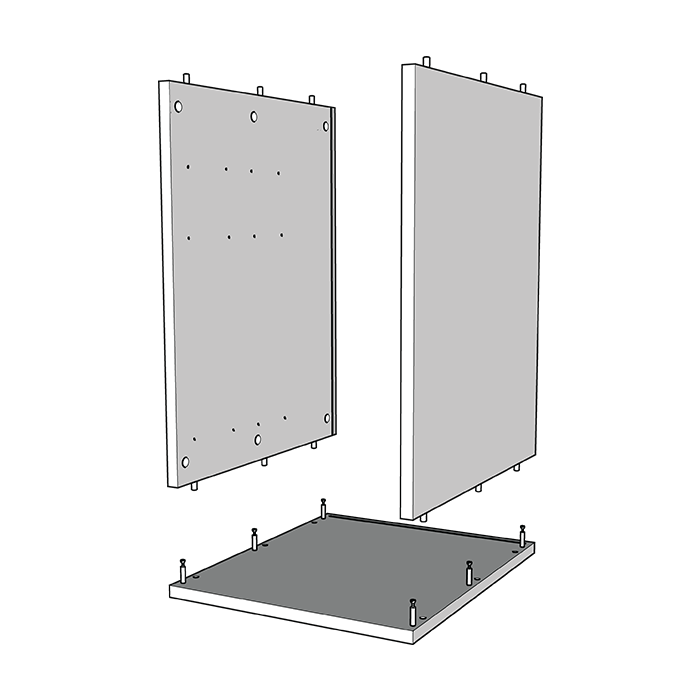

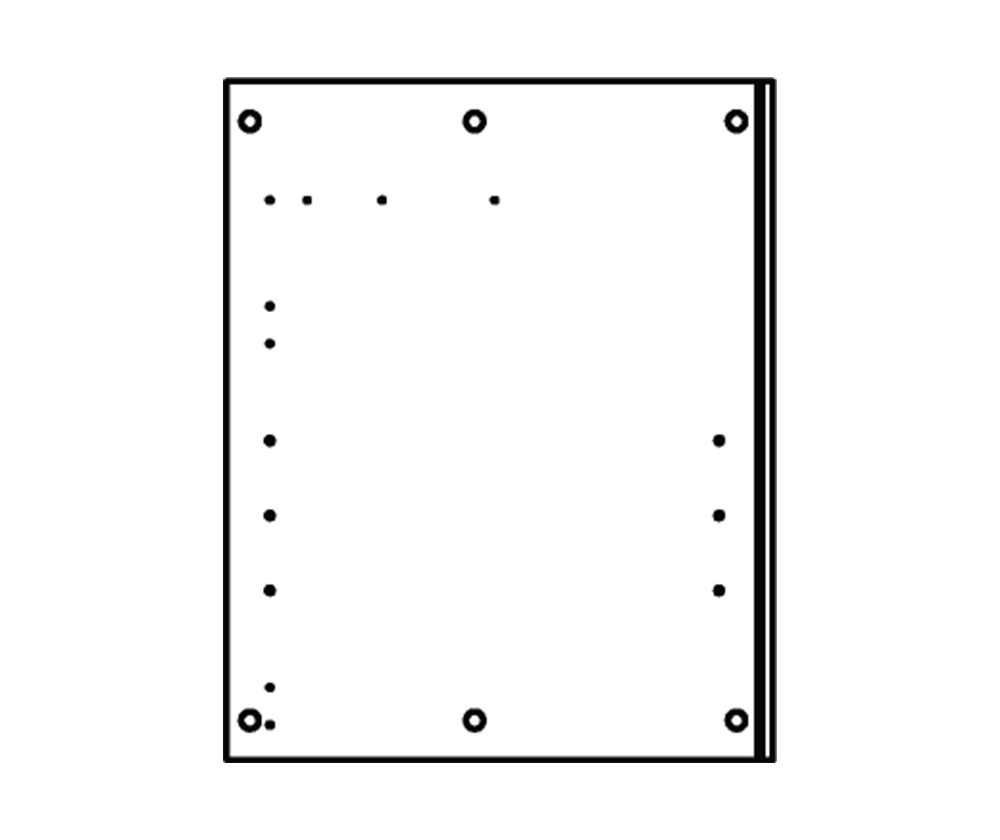

Step 2. Connect the two side panels with the bottom panel making sure that all the metal dowels are correctly aligned with the corresponding side panels.

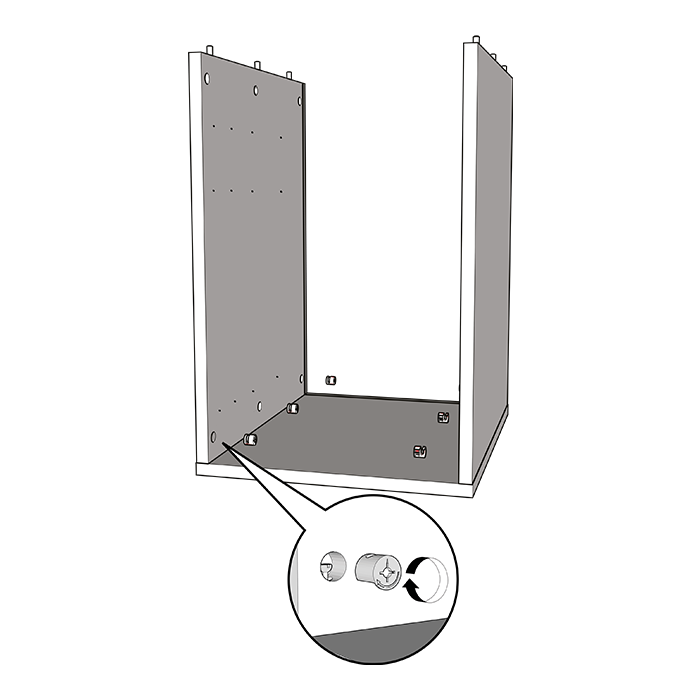

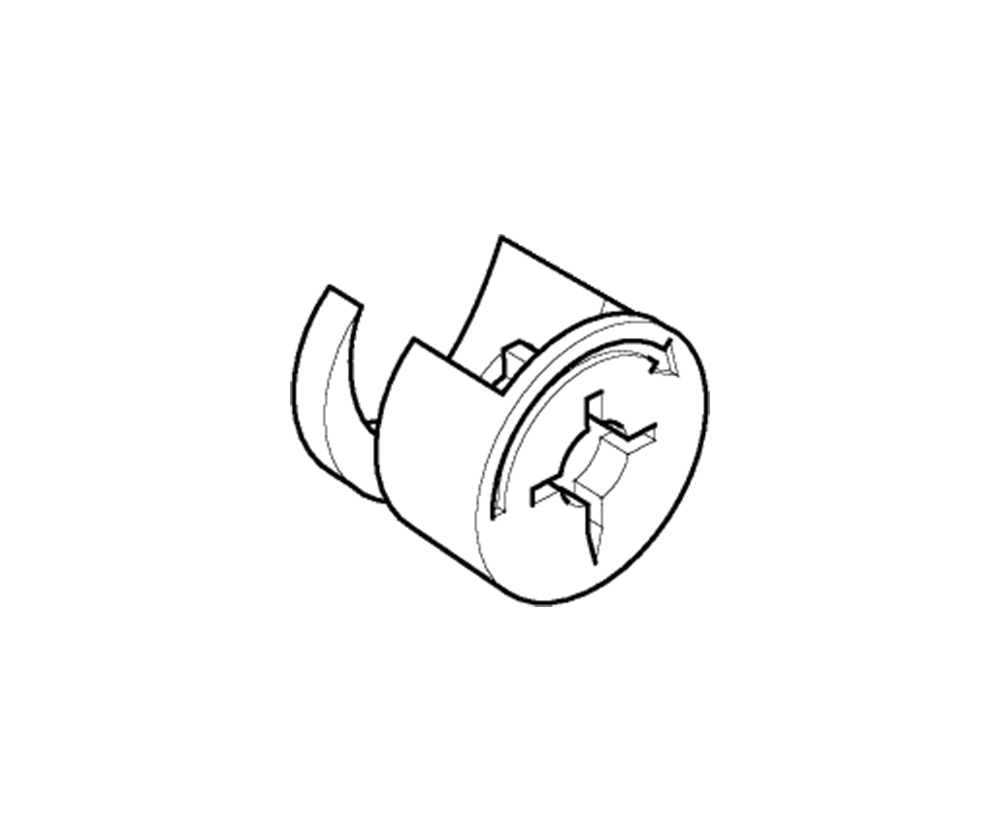

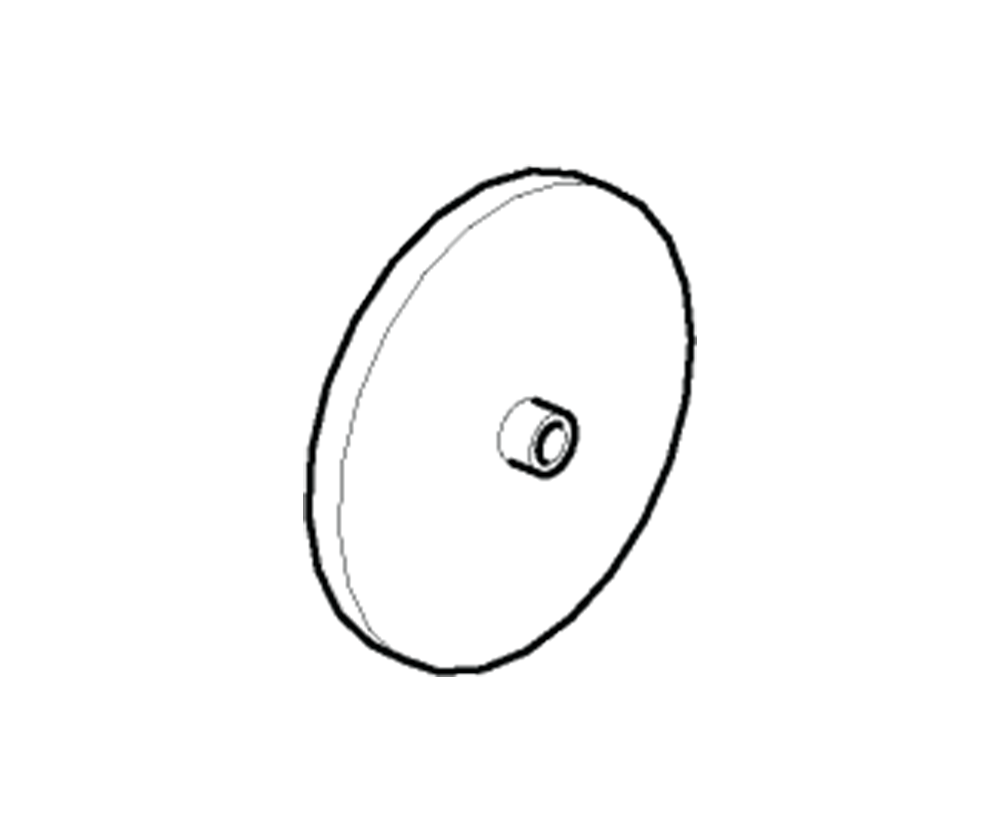

Step 3. Insert the cam locks in the side panel holes, making sure they are flush with the panel surface and tighten them by rotating them clockwise with a cross-head screwdriver.

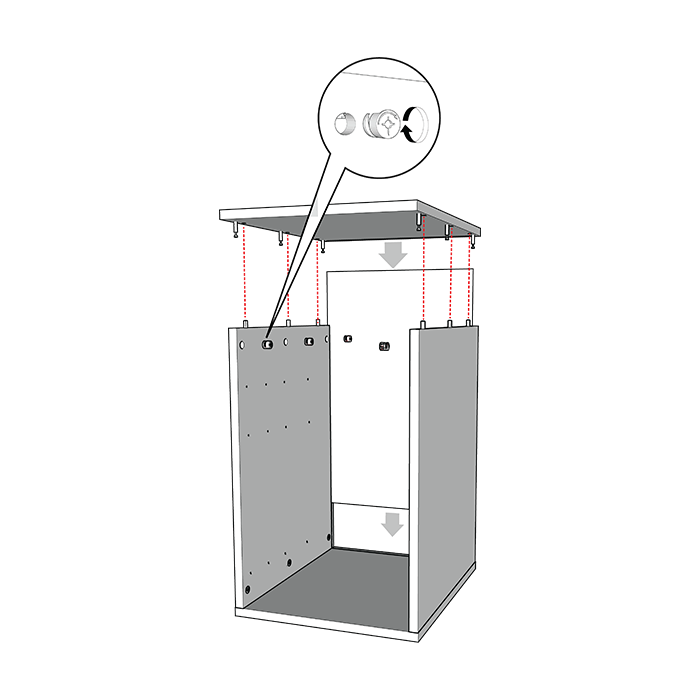

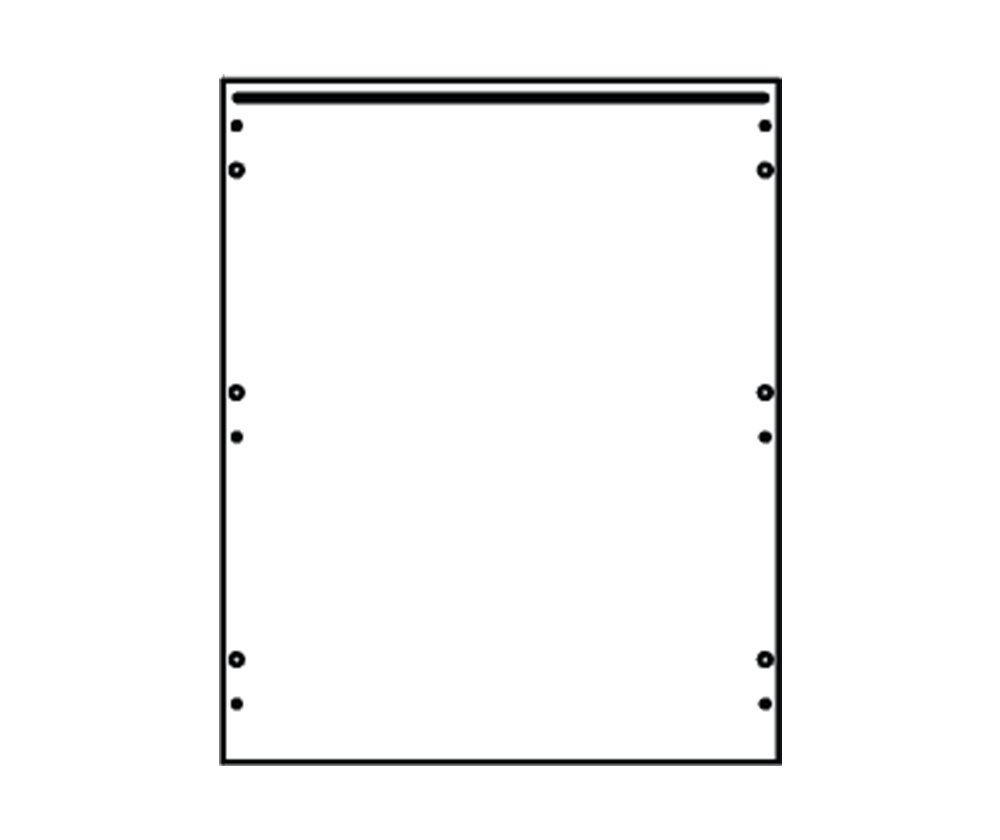

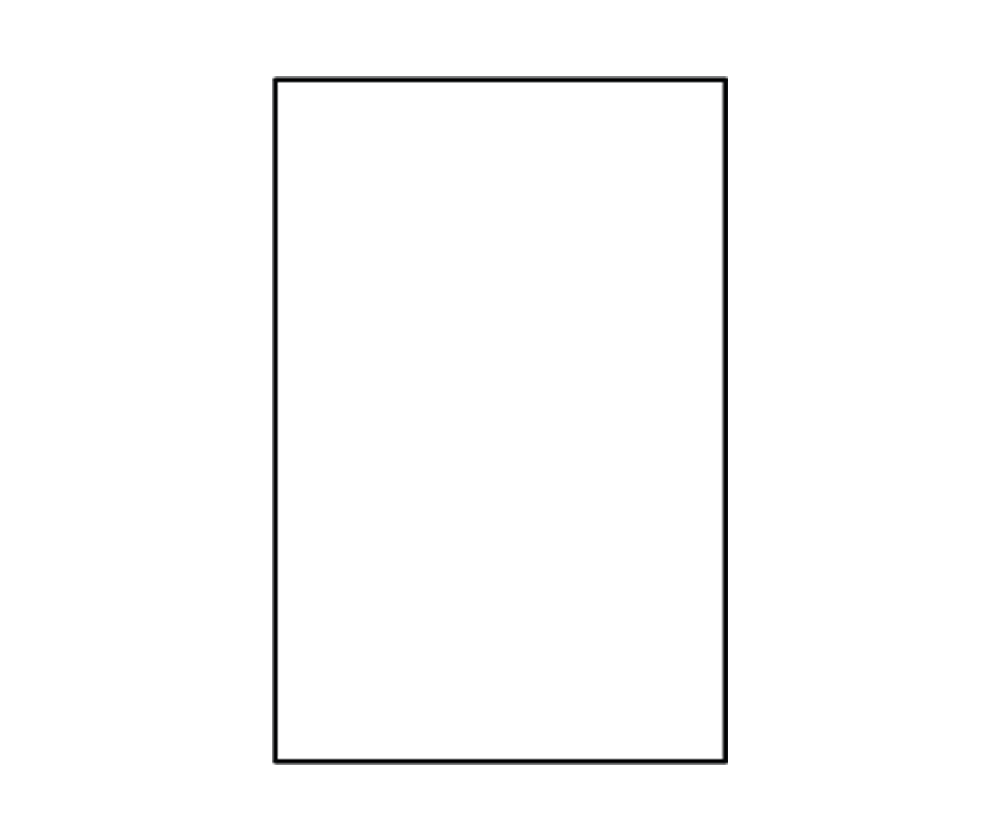

Step 4. Orient the back panel so the better side is facing inside the cabinet, and then slide the back panel into the grooves on the side and top panels. Fit the top panel by gently pushing it into place, ensuring all the metal dowels align correctly with the corresponding holes, and then lock it in place using the cam locks provided.

Step 5a. Fit the drawer slides using the hole pattern in the image and fit them to the pre-drilled holes in the side panels.

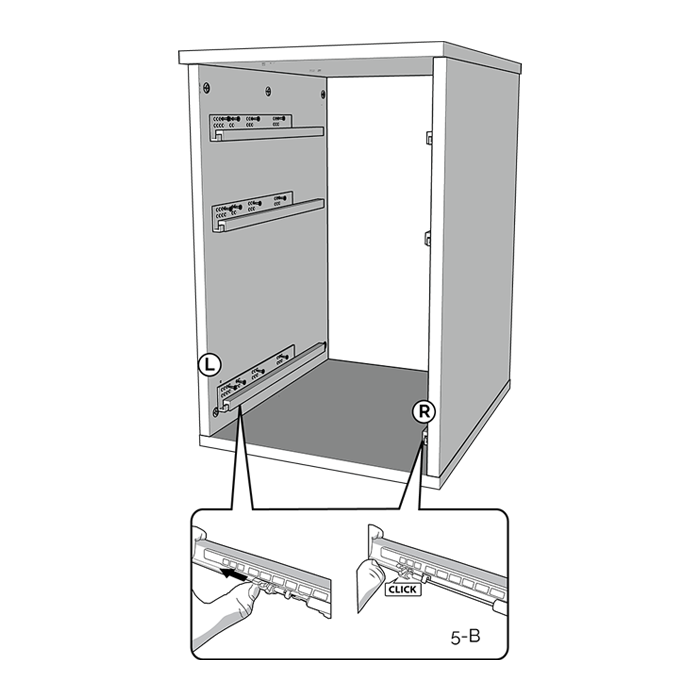

Step 5b. Ensure the soft close mechanism is extended correctly before installing the drawers.

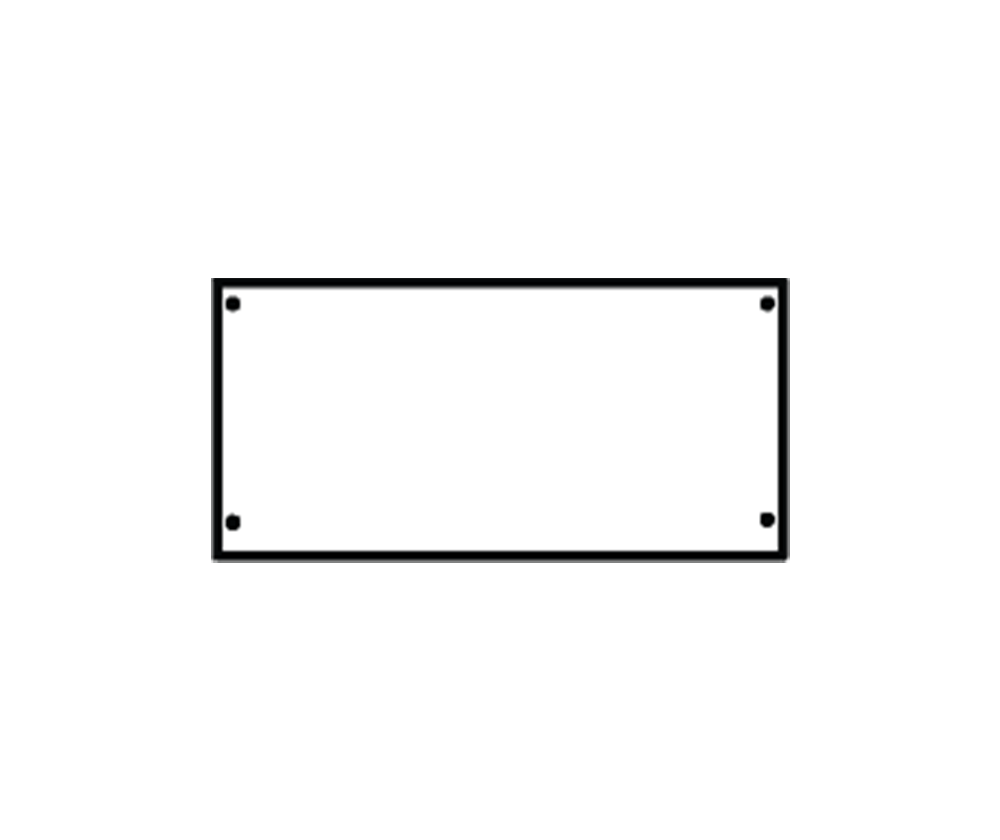

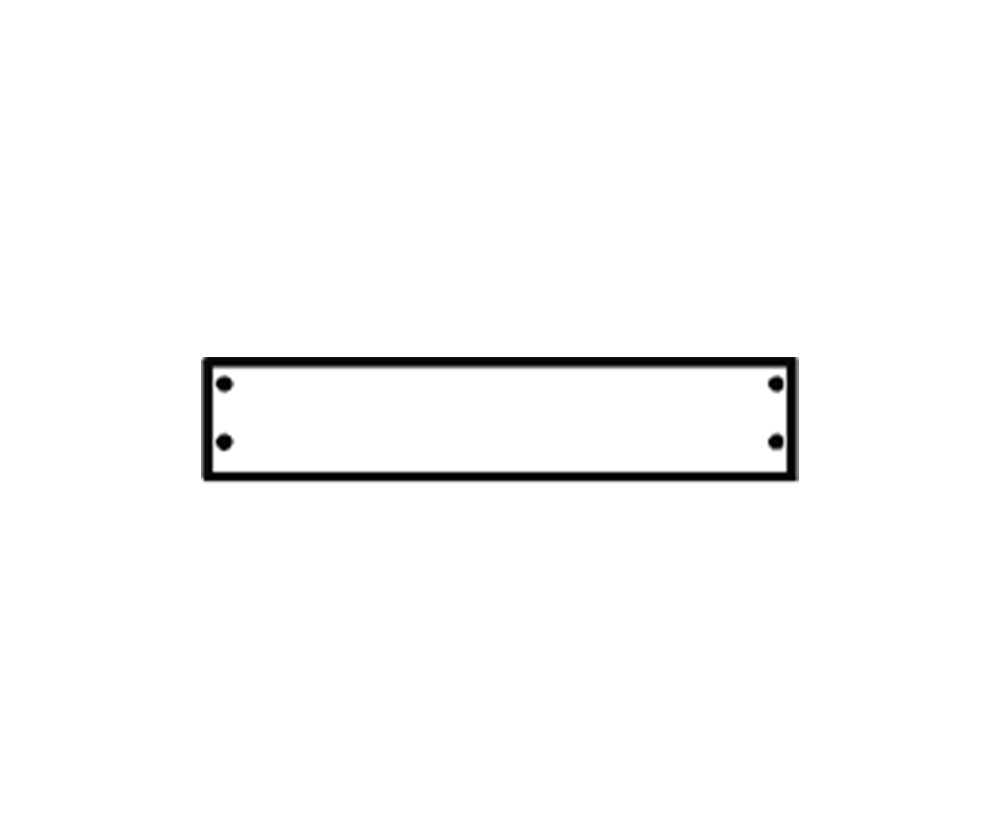

Step 6a. Attach the drawer sides to the drawer back panel with the provided screws.

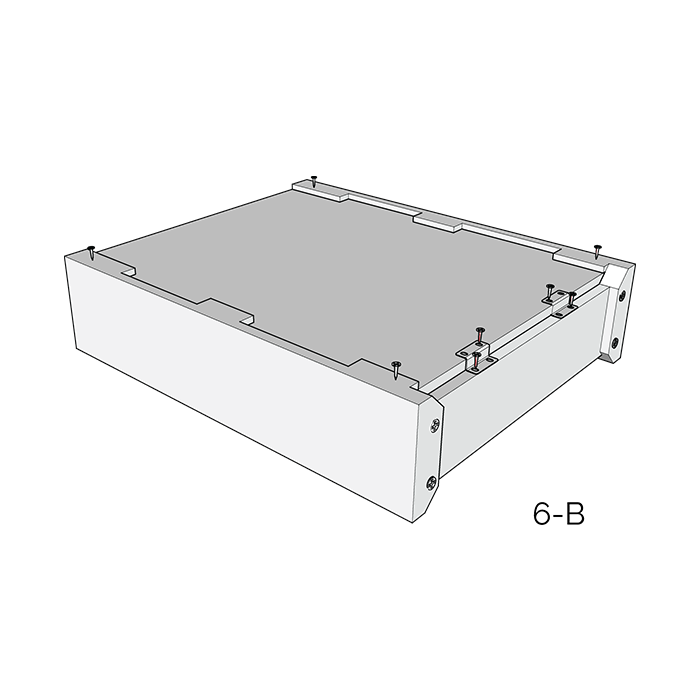

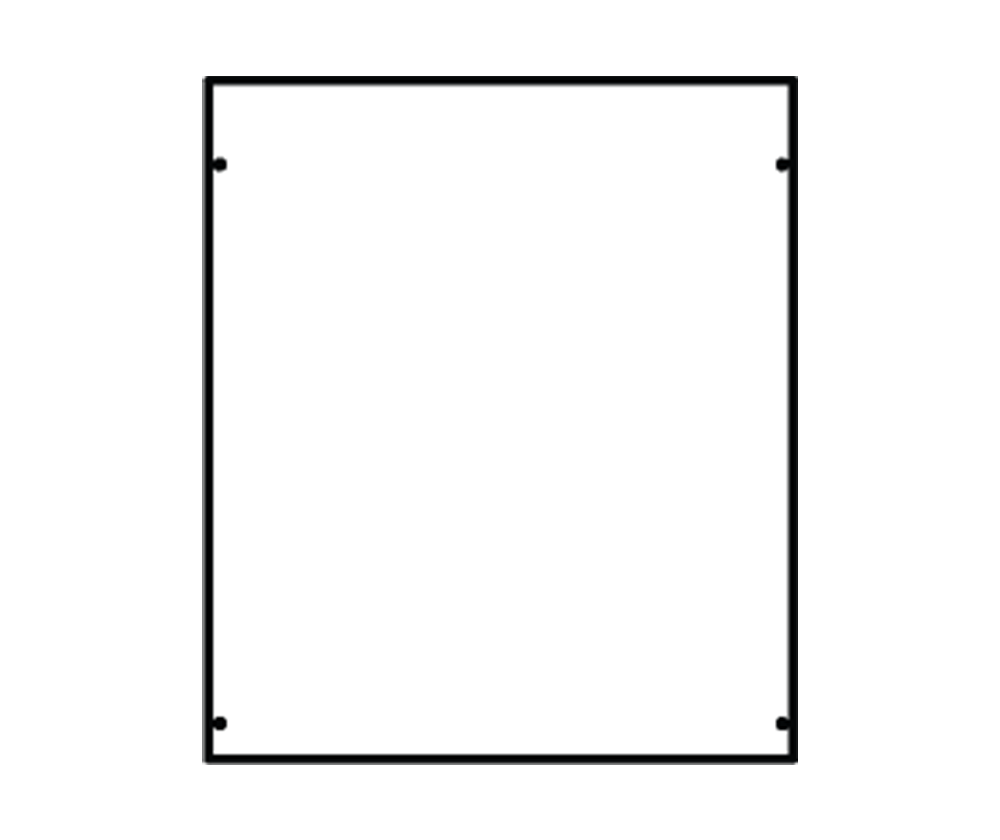

Step 6b. Attach the bottom panel with the provided screws and secure it to the back with the drawer back brackets. The holes on the bottom and back panels are pre-drilled.

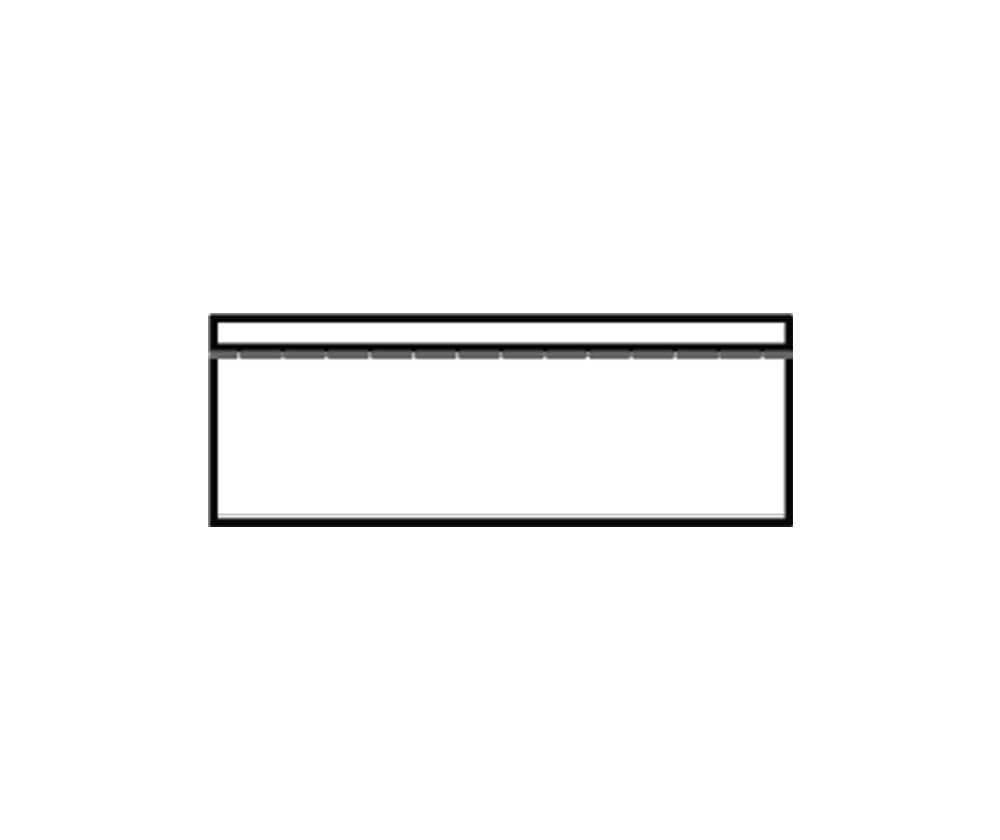

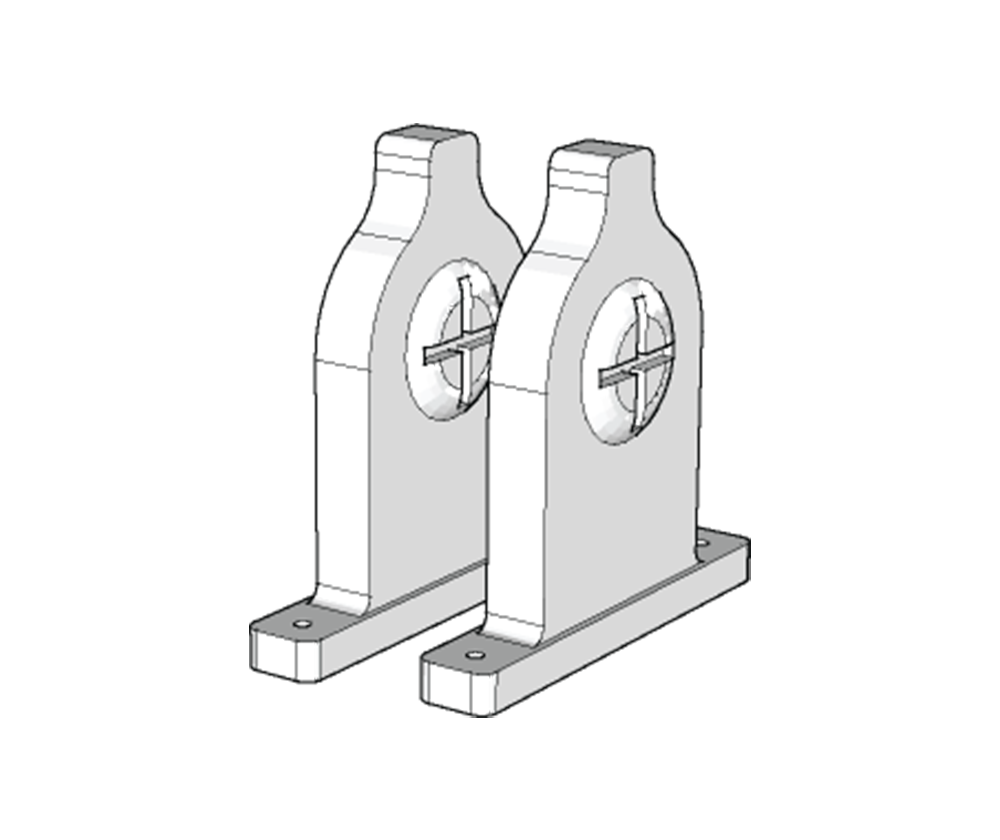

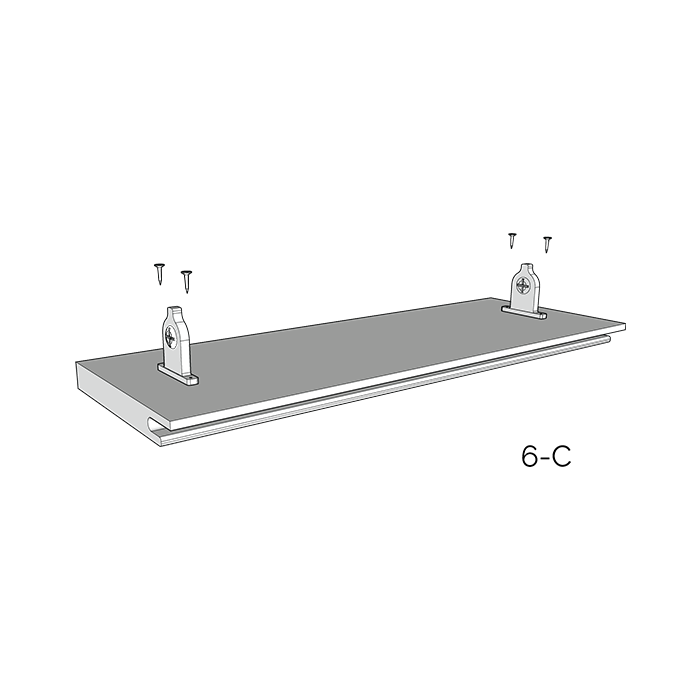

Step 6c. Attach the drawer front brackets to the drawer front panel with the provided screws. The drawer front panel is pre-drilled in the correct positions.

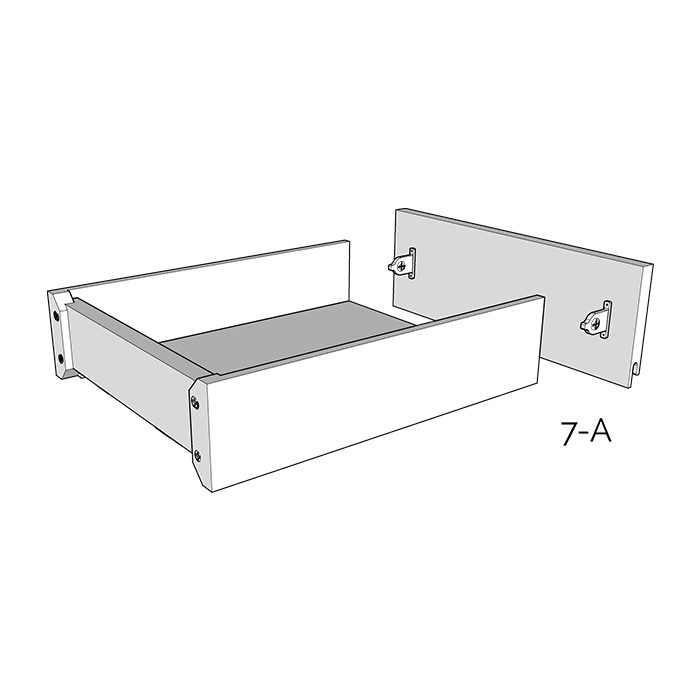

Step 7a. Attach the drawer front panel to the drawer assembly by aligning the drawer front brackets with the drawer sides and push forward until the front panel clicks into place.

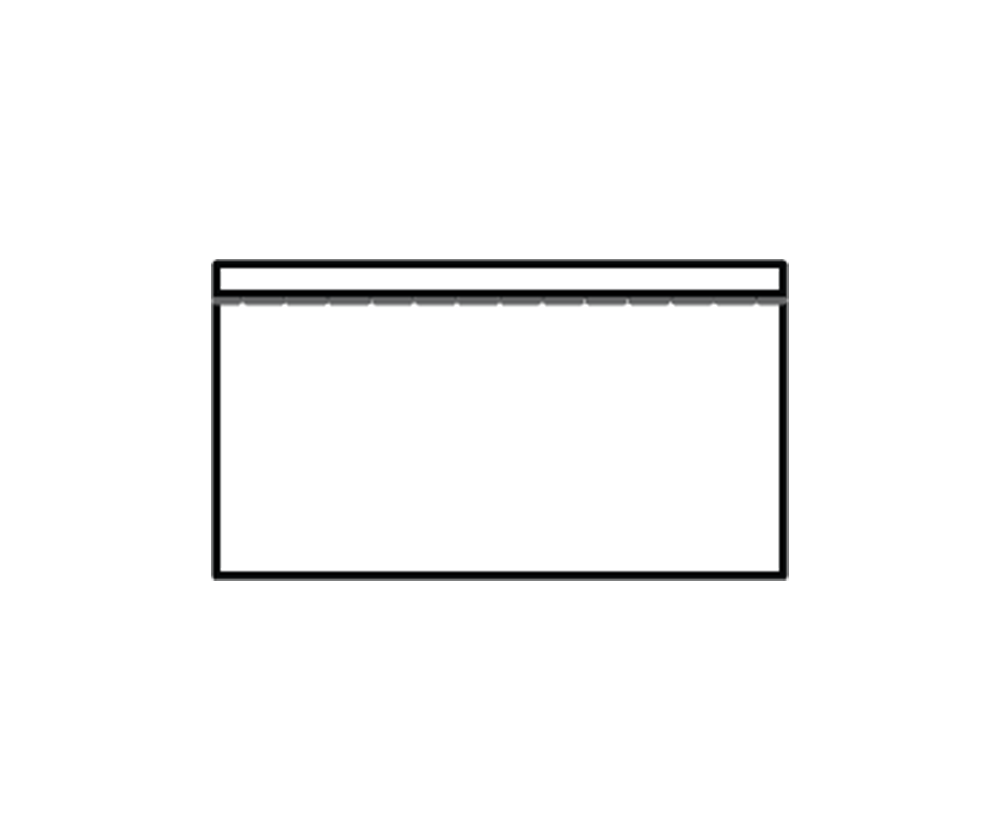

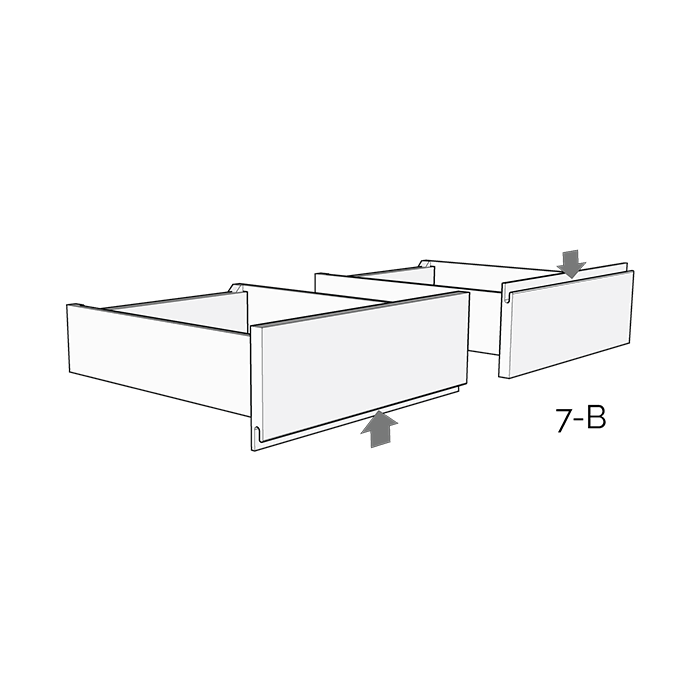

Step 7b. The short drawer fronts are designed to be fitted with the drawer pull positioned either upwards or downwards. The tall drawer front is designed to be installed with the drawer pull on the top side.

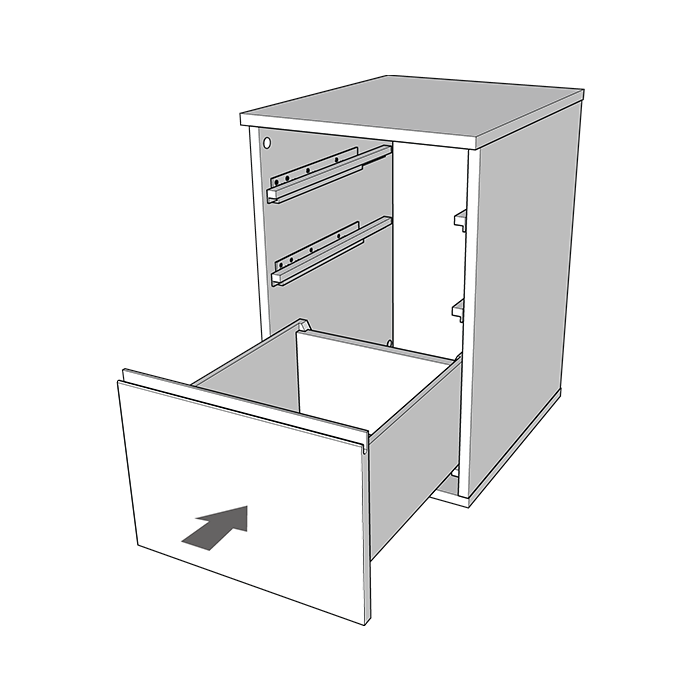

Step 8. Fit the bottom drawer (tall front) by positioning correctly the drawer onto the drawer runners and pushing forward.

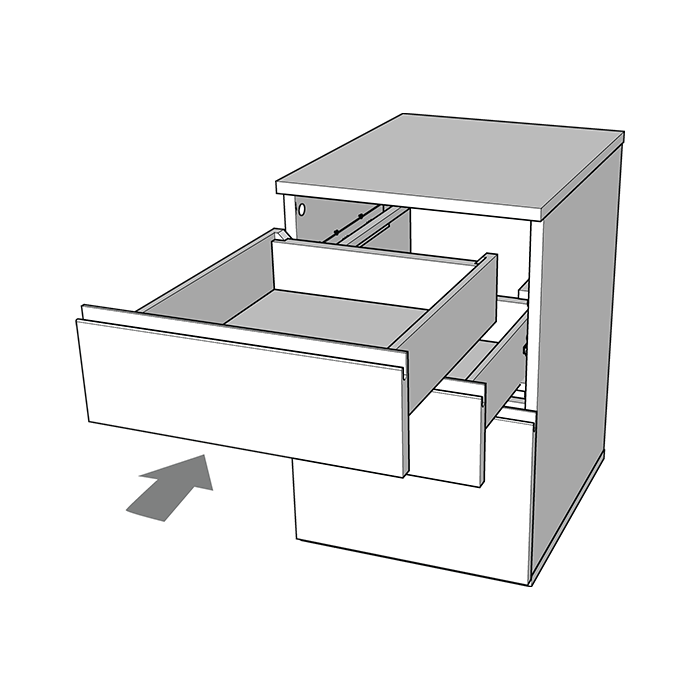

Step 9. Insert all three completed drawer assemblies into the cabinet assembly by positioning each drawer correctly onto the drawer runners and pushing forward.

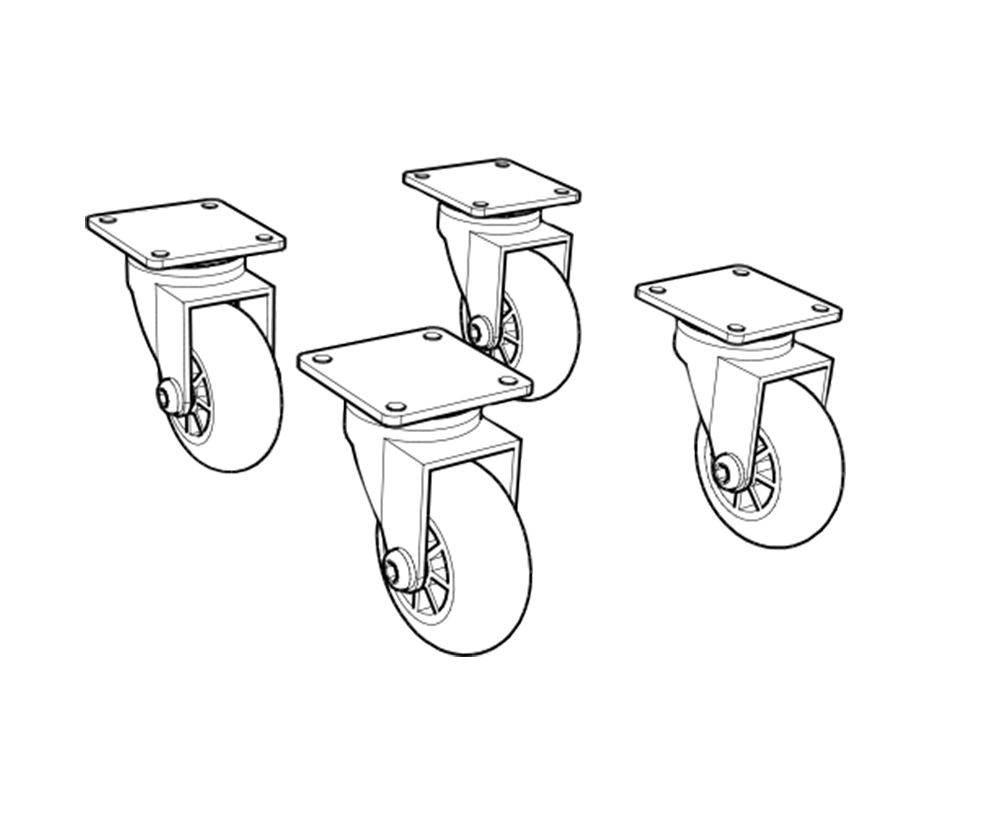

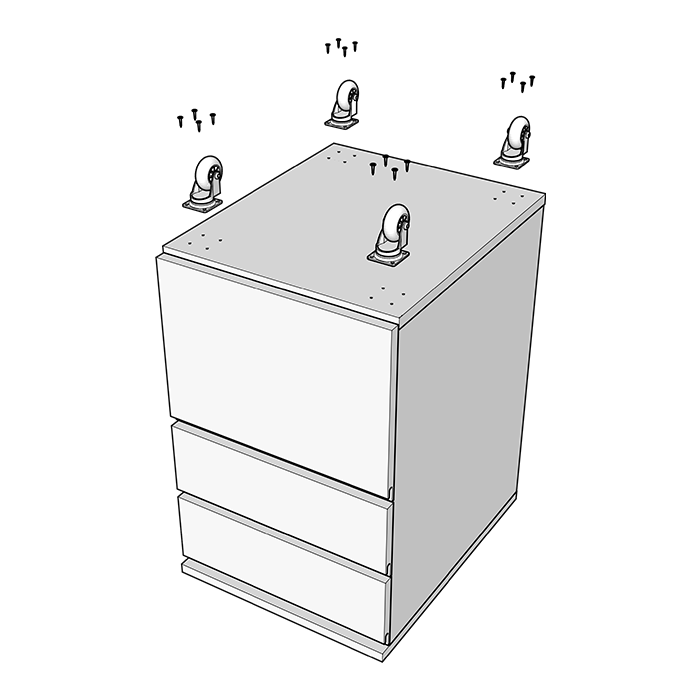

Step 10. Attach the wheels at the bottom of the cabinet.

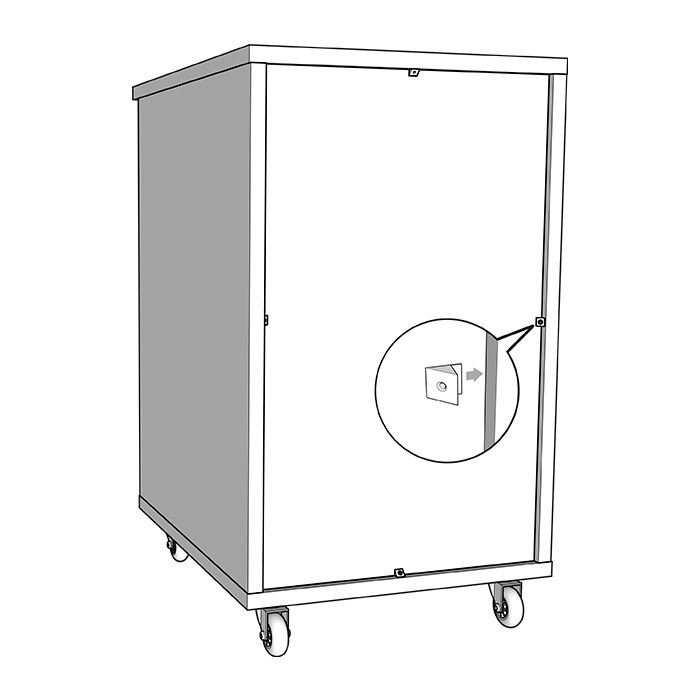

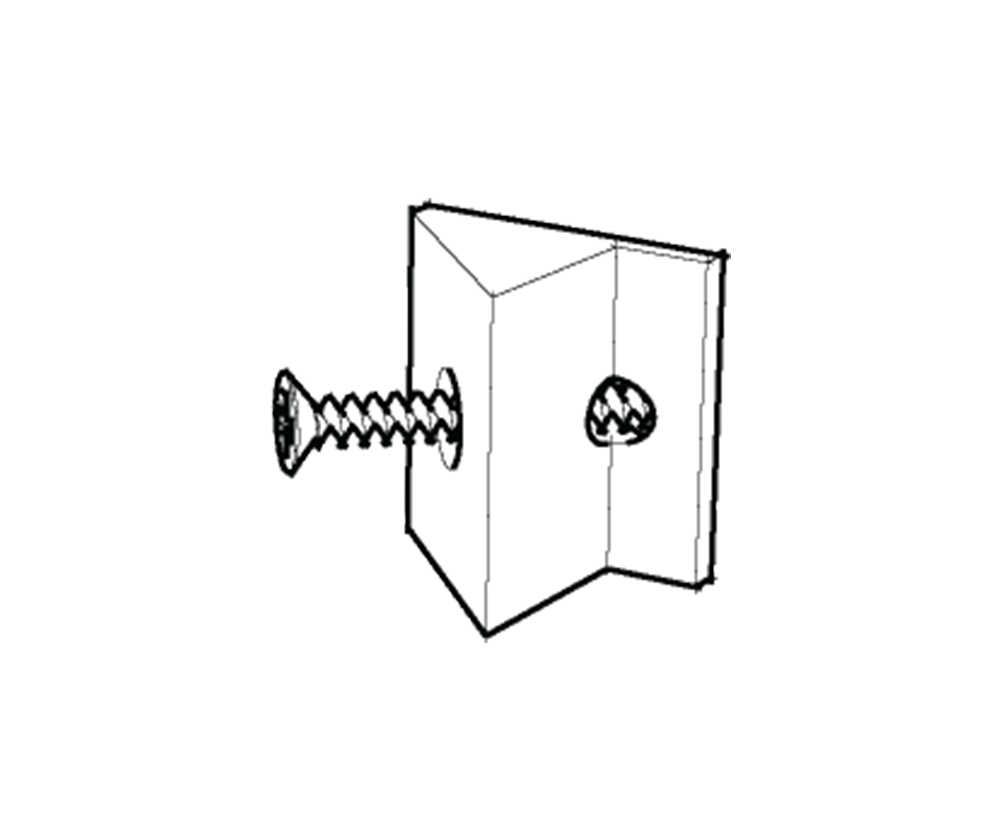

Step 11. Insert the four back panel connectors in the side panel groove and secure them in place by tightening the provided screw. Before tightening make sure there are no gaps between the connector and the inside corner of the back panel and they are evenly distributed as in the above image.
